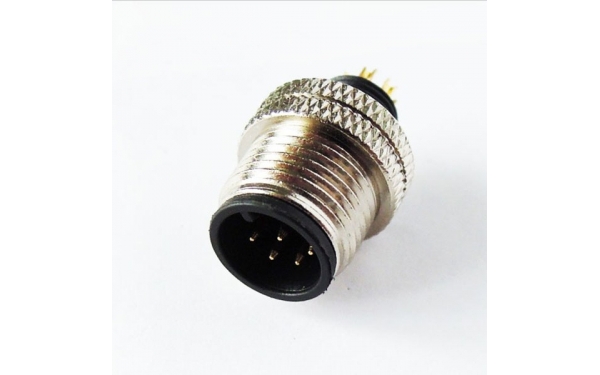

Connector Series: M12
Coding: A
General Information:
Standard: IEC 61076-2-101 Ed 3.0
Connector Body: PA66+GF or TPU
Connector Contacts: Brass with gold plated
Shell/Nut: Brass with nickel plated
Insulation Resistance: ≥100M
Waterproof Rating: IP67/IP68
Electrical Character:
| Contacts |
Rated Voltage |
Rated Current |
Contact Resistance |
Cable Format |
Cable OD |
| AC |
DC |
| 3 Pin |
250V |
250V |
4A |
＜10mΩ |
Epoxy resin |
3.5~7.5 |
| 4 Pin |
250V |
250V |
4A |
＜10mΩ |
Epoxy resin |
3.5~7.5 |
| 5 Pin |
60V |
60V |
4A |
＜10mΩ |
Epoxy resin |
3.5~7.5 |
| 8 Pin |
30V |
30V |
2A |
＜10mΩ |
Epoxy resin |
6.0~7.5 |
| 12 Pin |
30V |
30V |
1.5A |
＜10mΩ |
Epoxy resin |
6.0~7.5 |
